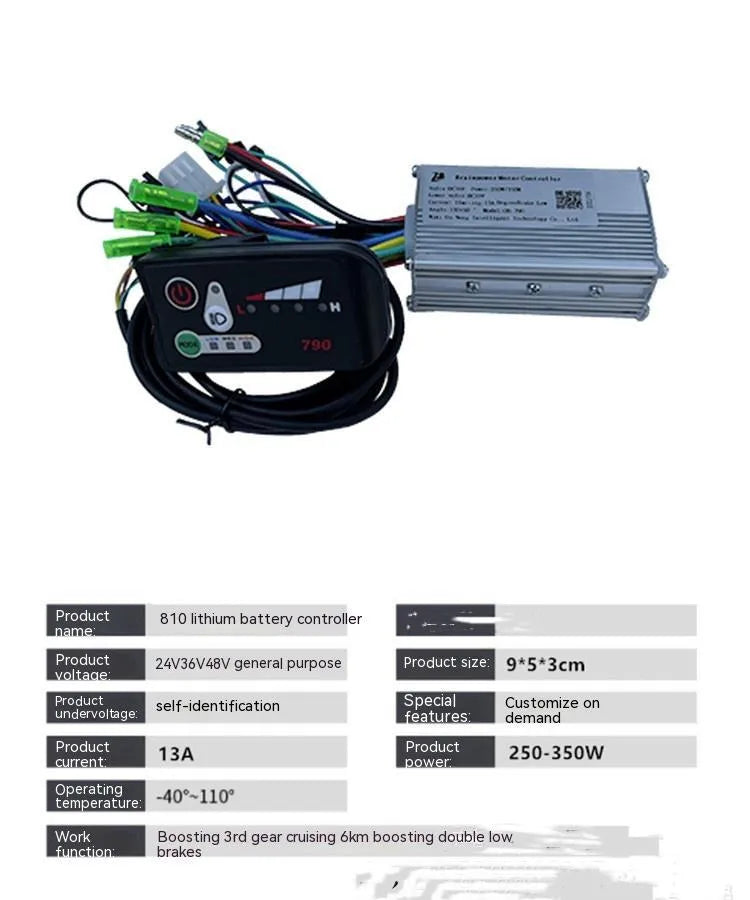

790 Mignon Maimai 6-Tube Controller for 250-350W Electric Bicycles and Scooters
This 6-tube motor controller serves as the central command unit for electric bicycles and scooters, managing power delivery from the battery to the motor. Designed for systems rated between 250 and 350 watts, it offers a wide operating voltage range from 24V to 48V, providing significant flexibility for different vehicle setups. Its primary function is to translate user throttle input into precise motor control, while incorporating vital protection features like undervoltage cutoff to safeguard the battery. As the 790 Mignon Maimai model, it is a key component for repair, replacement, or performance tuning of light electric vehicles.
Features and Construction
The controller's 6-tube design refers to its internal power stage, a common configuration for managing the currents required by 250-350W motors. Its compact form factor, measuring 9cm by 5cm by 3cm, allows it to fit into the often tight spaces of electric bicycle frames or scooter decks. The unit's capabilities are defined by its electrical specifications rather than external materials, focusing on its functional compatibility and protection systems.
Material and Build
The source text details the controller's electrical specifications and compatibility but does not specify the materials used in its casing or internal construction. Its build is centred around a circuit board populated with the necessary electronic components, including the six power transistors (tubes), microprocessors, and connectors. The practical relevance of its construction lies in its ability to handle continuous power output and dissipate heat effectively for the rated 250-350W range.
Size and Practical Fit
With dimensions of 9cm in length, 5cm in width, and 3cm in depth, the controller has a compact, rectangular profile. This size makes it suitable for installation in various electric bicycle and scooter models where space is limited. When installing, ensure the location provides adequate airflow to assist with cooling during operation and is protected from direct exposure to water and excessive vibration.
Uses and Placement
This controller is designed specifically for light electric vehicles, acting as the intermediary between the battery pack, throttle, and motor. Its primary use is to provide smooth acceleration and reliable speed control for the rider. The 24V to 48V operating range means it can be applied to a variety of systems, from lower-power mobility aids to more potent commuter scooters.
Event or Professional Use
For professional mechanics or vehicle customisers, this controller offers a standardised component for repairing or upgrading customer vehicles. Its compatibility with multiple battery chemistries—lead-acid, ternary lithium, and iron lithium—and various motor types like brushless toothed and high-speed motors makes it a versatile spare part. The ability to adjust undervoltage protection parameters allows technicians to fine-tune the system for optimal battery health and vehicle range.
Everyday Home Use
For the individual owner, this controller is a critical replacement part if the original unit in an electric bicycle or scooter fails. Selecting the correct voltage variant (24V, 36V, or 48V) that matches the existing battery pack is essential. The user must follow wiring diagrams carefully and may need to adjust the undervoltage settings based on their battery's specifications to prevent premature cut-off or deep discharge.
Benefits and Buying Value
The value of this controller lies in its specified compatibility and configurable protection features. It provides a direct solution for a failed motor controller, potentially restoring a vehicle to function. Its design for a broad power and voltage range increases the likelihood it will match a given vehicle's requirements, reducing the complexity of sourcing an exact OEM replacement.
Reuse and Low Maintenance
As an electronic component with no moving parts, the controller itself requires no routine maintenance. Its longevity is tied to correct installation, adequate cooling, and operation within its stated 250-350W and 24-48V limits. The product's value is realised through the continued use of the electric vehicle it enables, avoiding the cost of replacing the entire vehicle.
Why Choose This Product
Choose this 790 Mignon Maimai controller if you need a compatible power management unit for a 250-350W electric bicycle or scooter. Its documented support for multiple battery types and motor kinds, combined with adjustable undervoltage protection, offers a practical level of flexibility. The provided dimensions allow you to verify it will fit your vehicle's available space before purchase.
