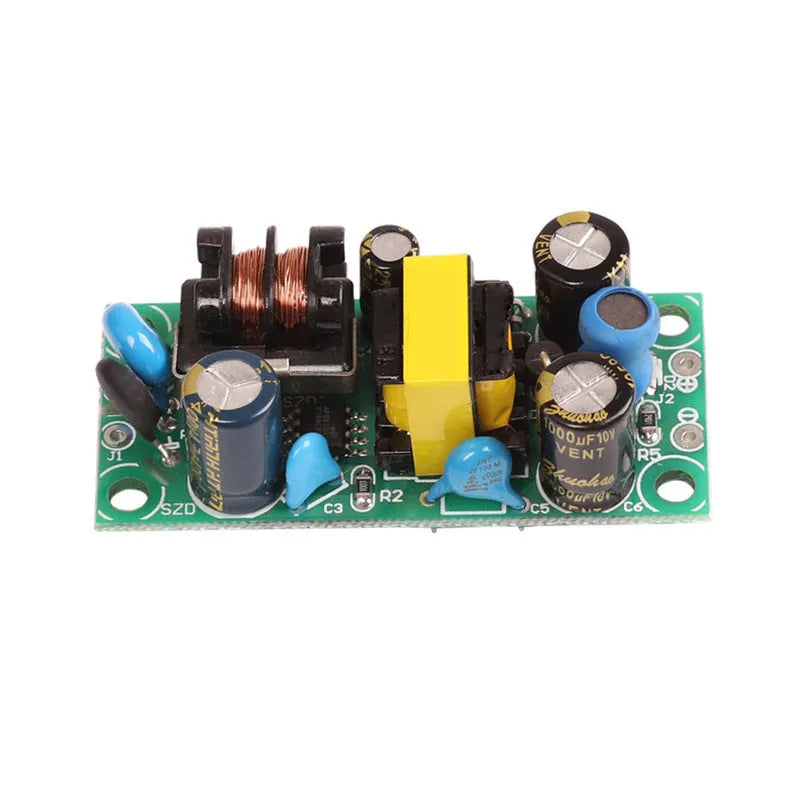

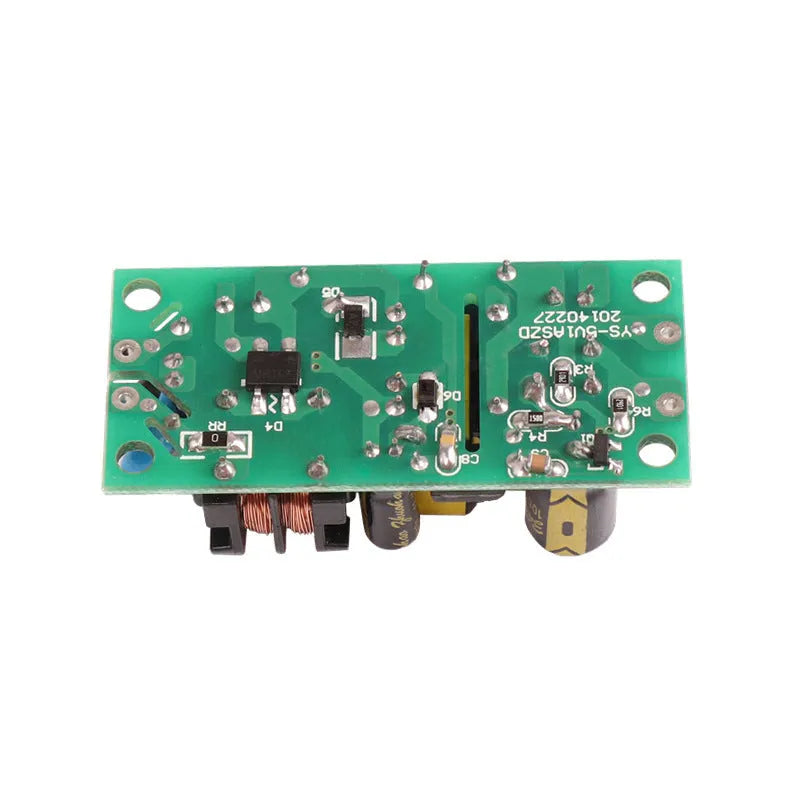

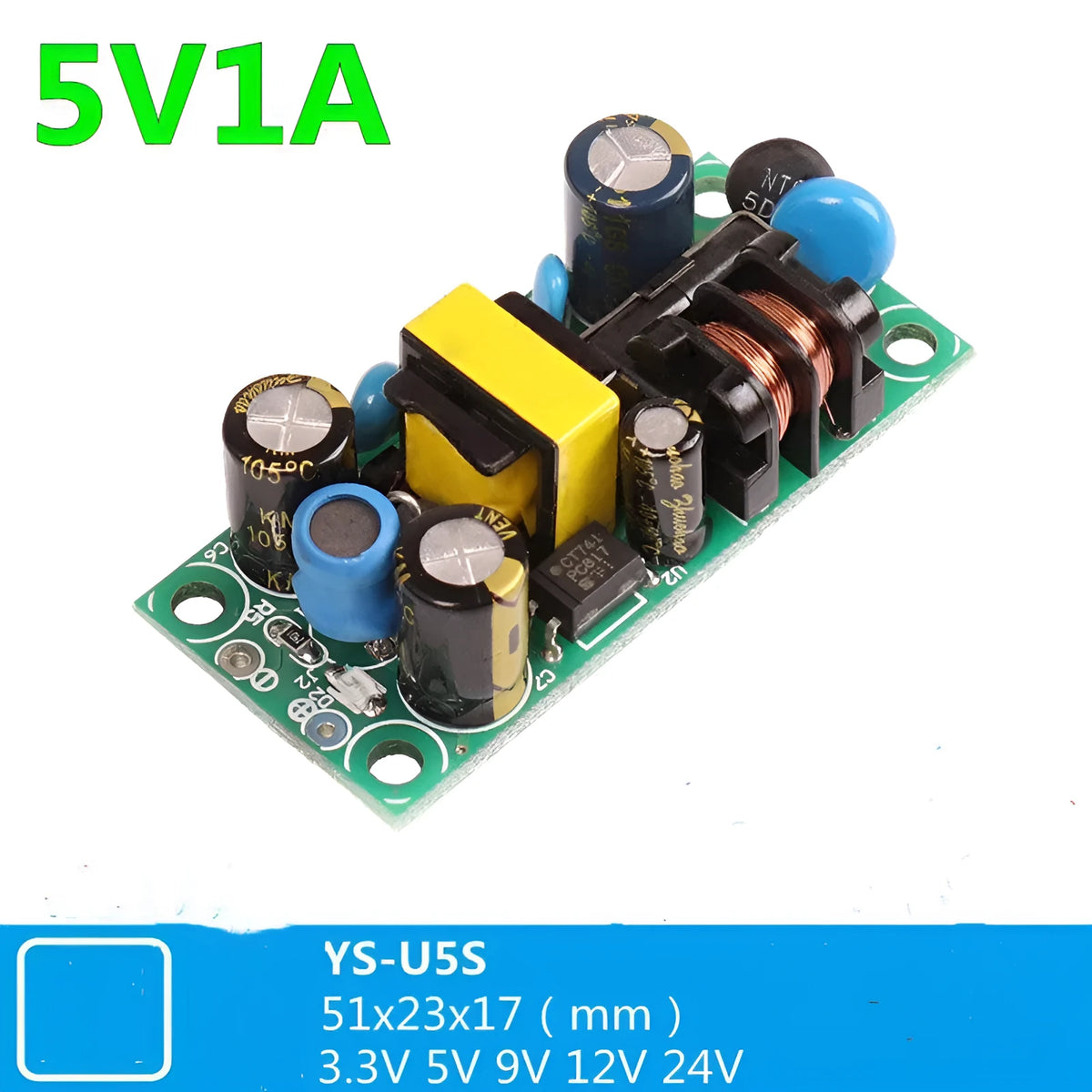

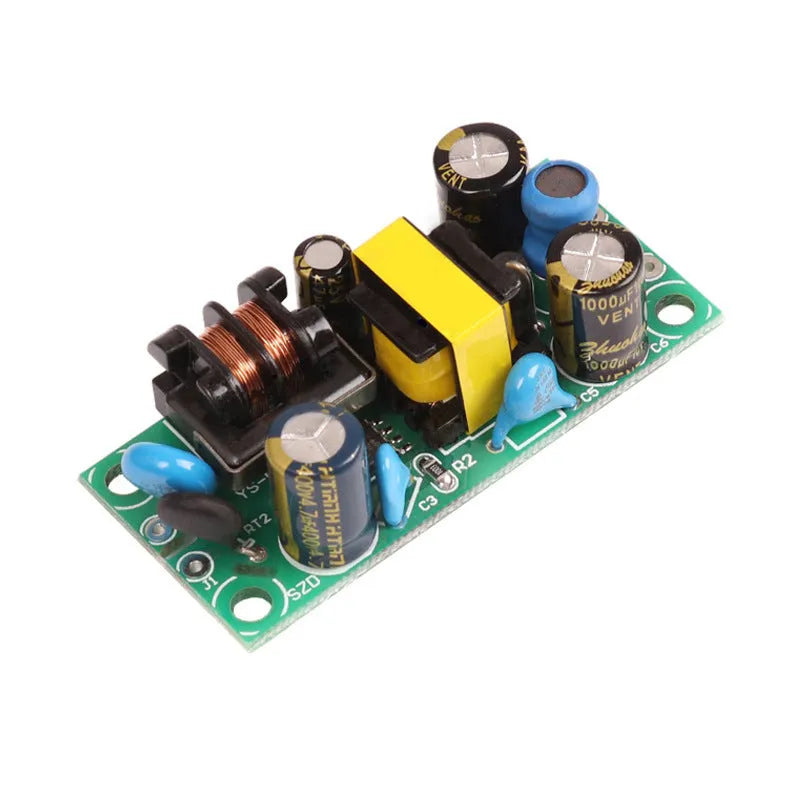

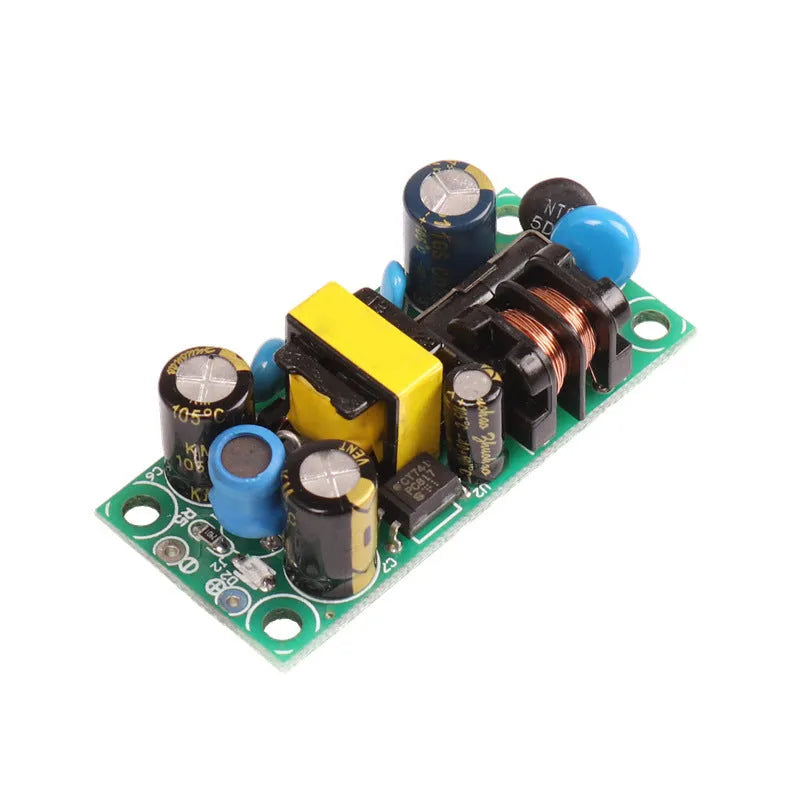

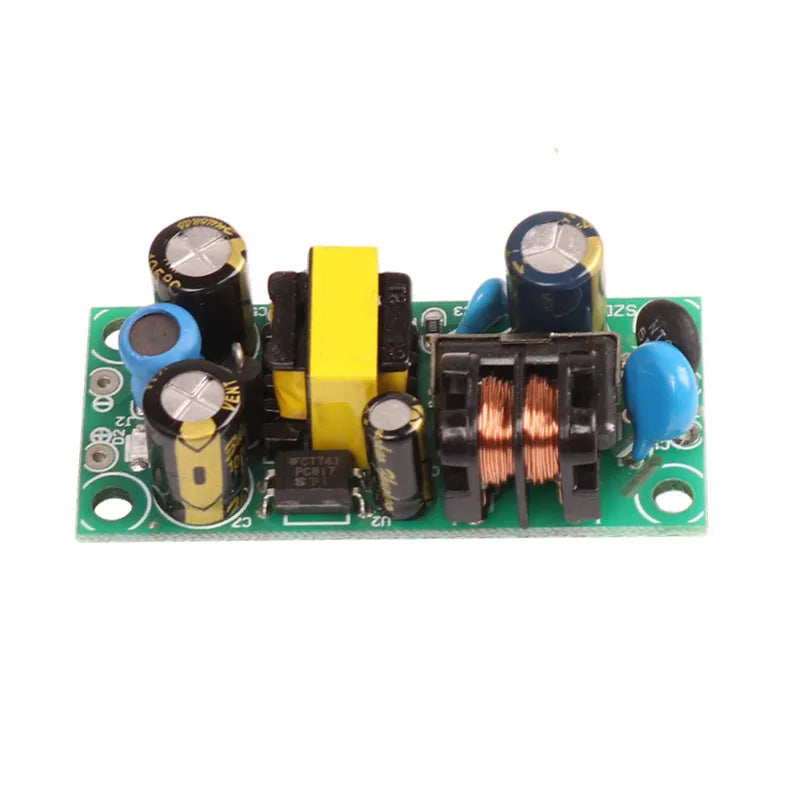

YS-U5S Metal Switching Power Board Module: AC to 5V DC Conversion for Electronics
This switching power board module, model YS-U5S, converts standard mains AC electricity into a stable 5V DC supply suitable for powering various electronic circuits, projects, and devices. Housed in a metal case, it accepts a broad input voltage range from 110V to 220V AC, making it compatible with common power grids in different regions. Its core function is to provide a reliable, regulated low-voltage DC source, with output power configurable between 3 watts and 150 watts to match specific application requirements.
Features and Construction
The module's design centres on efficient power conversion and regulation, employing specific technical methods to manage the transformation from high-voltage alternating current to low-voltage direct current.
Material and Build
The board module is constructed with a metal housing, which provides a rigid enclosure for the internal electronic components. This material choice offers a degree of physical protection and may aid in heat dissipation during operation, though specific thermal performance data is not provided. The build focuses on housing the circuitry necessary for the power conversion process.
Power Specifications and Performance
The module's key performance parameters include an input voltage range of 110V to 220V AC and a fixed output voltage of 5V DC. The output power is not fixed but is adjustable across a range from 3 watts to a maximum of 150 watts. It achieves a working efficiency between 60% and 90%, meaning the percentage of input power successfully converted to usable output power falls within this band. The output features a voltage regulation rate of 3% and a stated load adjustment rate of 120%.
Technical Operation and Regulation
The module uses specific electronic techniques to control and stabilise its power output, ensuring the delivered voltage remains consistent despite variations in input or demand.
PWM Control and Circuit Design
Power regulation is managed through a pulse width modulation (PWM) method. This technique controls the output by rapidly switching the power on and off, adjusting the width of these pulses to vary the average voltage delivered, thereby maintaining the target 5V output. The transistor connection within the circuit uses a single-ended configuration, which is a specific design approach for implementing the switching power supply topology.
Output Quality and Accuracy
The quality of the DC output is characterised by an output voltage accuracy of ±3%, meaning the actual voltage will remain within 3% of the stated 5V target. The output also contains a small amount of residual alternating current noise, termed ripple noise, measured between 50 millivolts and 300 millivolts. This specification indicates the level of unwanted AC variation present on the DC output signal.
Uses and Placement
This module is designed for integration into larger systems or projects where a standardised, reliable 5V power source is needed from a mains electricity supply.
Event or Professional Use
In professional, educational, or workshop settings, this module can serve as a bench power supply component for prototyping, testing, or powering development boards, microcontroller circuits, or small electronic displays. Its adjustable power output up to 150W allows it to support a variety of experimental setups or dedicated low-voltage equipment that requires a stable 5V rail.
Everyday Home Use and DIY Projects
For hobbyists and DIY enthusiasts, the module provides the core power conversion stage for custom projects such as LED lighting arrays, small charging stations, or homemade electronic devices. Its ability to connect directly to wall socket voltage simplifies the process of creating mains-powered gadgets by handling the potentially hazardous high-voltage conversion internally, leaving the user to work with the safer 5V output.
Benefits and Buying Value
The value of this module lies in its specific function as a ready-made, configurable power conversion unit, saving time and technical effort compared to designing a similar circuit from discrete components.
Reuse and Low Maintenance
As a modular component, it can be reused across multiple projects or repurposed if requirements change. Its solid-state design with a metal case suggests a focus on durability for the housing, though the longevity of the internal electronics depends on operating conditions. Maintenance is typically minimal for such modules, primarily involving ensuring connections are secure and the unit is kept free from excessive dust or moisture.
Why Choose This Product
This switching power module is a practical choice for anyone needing a straightforward method to obtain 5V DC power from a mains outlet, particularly when the required current draw (and thus power between 3W and 150W) is known. The provided specifications for efficiency, regulation, and ripple noise allow for an informed selection based on the technical needs of the intended application, without requiring the user to source and assemble individual power supply components.
