Tesla Coil Driver Board for Music-Synchronised Lightning Arcs up to 20cm

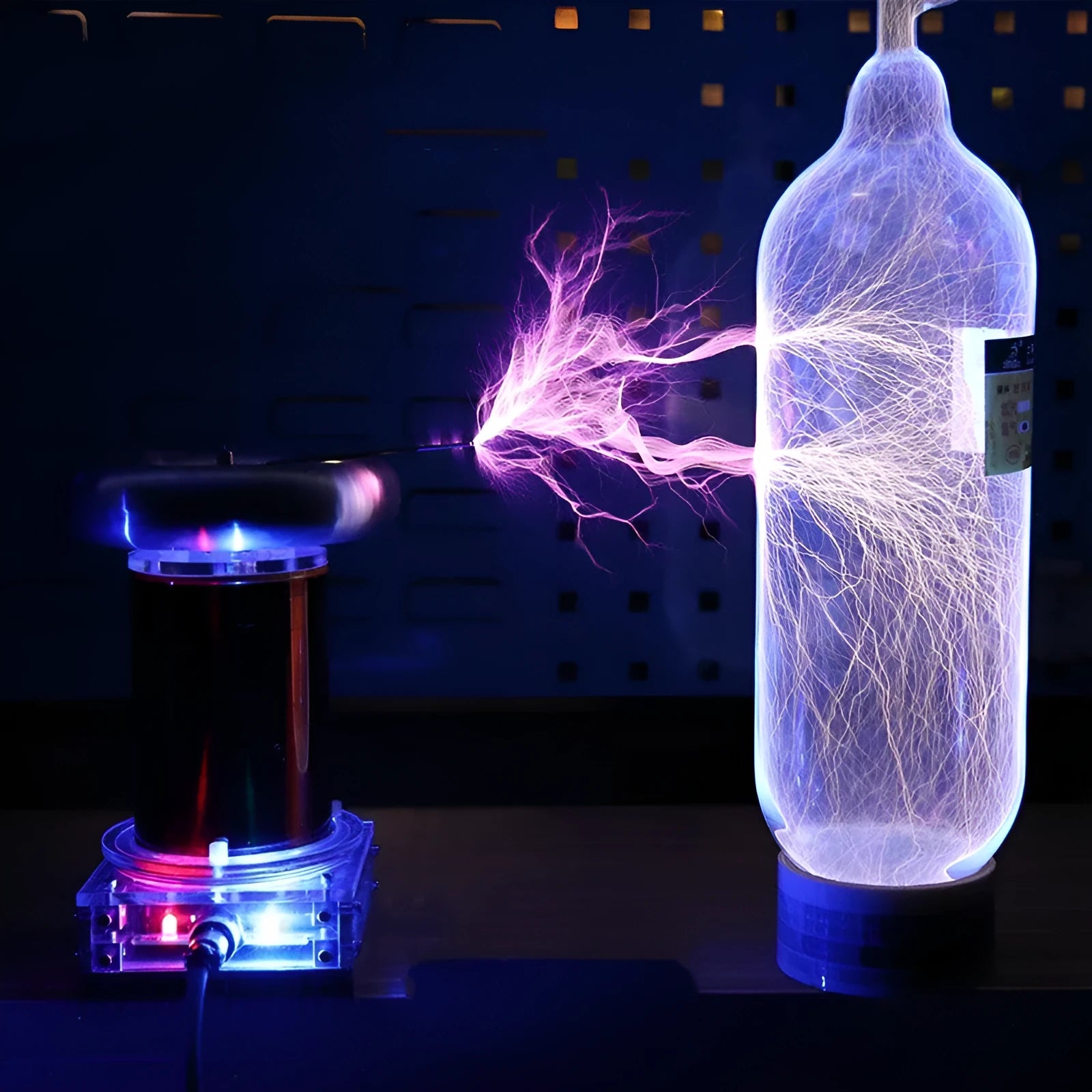

This Tesla coil driver board provides a complete system for generating impressive electrical arc displays that respond directly to audio input. Designed for educational demonstrations, science exhibitions, or visual effects, it eliminates the complexity typically associated with high-voltage equipment by operating directly from standard 220V mains power without requiring a separate ground connection. The integrated arc extinguishing isolation device enhances operational safety, while the compact 100x115x205mm chassis houses robust electronics capable of producing arcs reaching 20cm in length. With its 3.5mm audio input, the system transforms musical waveforms into visible electrical patterns, creating mesmerising visualisations that respond to rhythm and frequency.

Technical Specifications and Build

The driver board combines practical engineering with visual spectacle, featuring specifications that balance performance with user accessibility. With a product capacity of 200VA and average power handling of 250W, it generates sufficient energy for impressive demonstrations while maintaining manageable operational parameters. The input accepts AC voltage from 110V to 240V, with working current adjustable between 0.1A and 2A depending on arc intensity requirements.

Power and Electrical Design

Unlike many high-voltage systems requiring complex setups, this driver board simplifies operation with direct 220V power supply capability. This means users can connect directly to standard wall sockets without needing additional transformers or power supplies. The coaxial cable signal transmission ensures clean audio transfer to the coil system, while the integrated arc extinguishing isolation device provides an additional safety layer by interrupting arcs under certain conditions. The 20m maximum arc discharge distance specification indicates the system's capability for substantial visual displays in appropriate settings.

Physical Construction and Ports

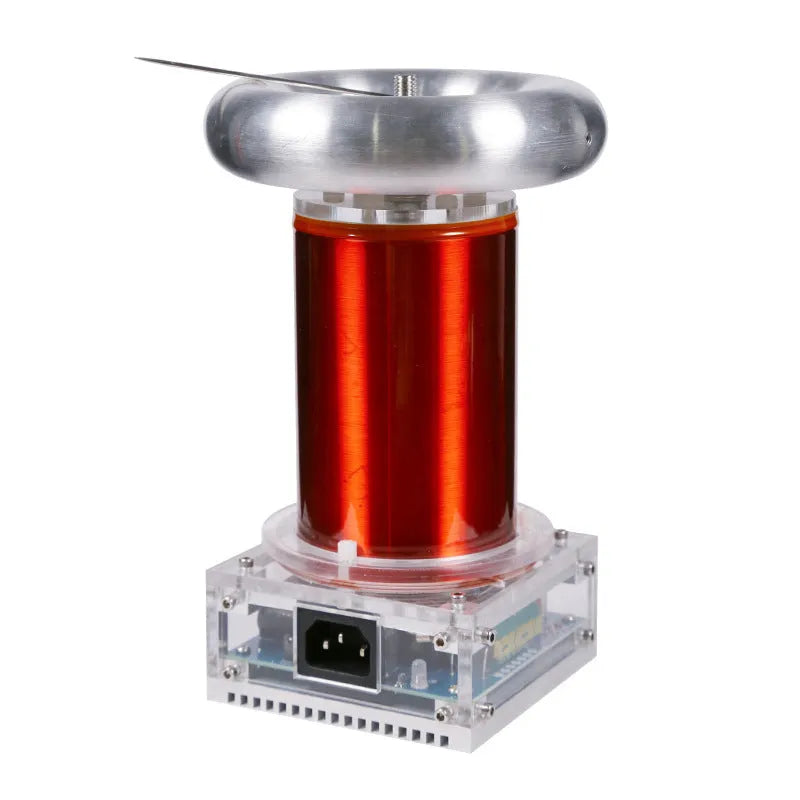

The compact chassis measures 100mm wide by 115mm deep by 205mm in height, with a total weight of 1kg for reasonable portability between demonstrations. External connections include the essential 3.5mm audio port for music input, along with power input and controller interfaces. The robust construction withstands the electrical stresses of arc generation while remaining suitable for transport to different venues or storage between uses.

Operation and Practical Use

Operating the Tesla coil system requires following specific procedures to ensure both optimal performance and user safety. The setup process involves several sequential steps that properly prepare the equipment for arc generation, with particular attention to the thimble installation on the pressure equalisation ring. Once configured correctly, the system produces spectacular visual effects suitable for various applications from educational purposes to entertainment displays.

Setup and Initial Configuration

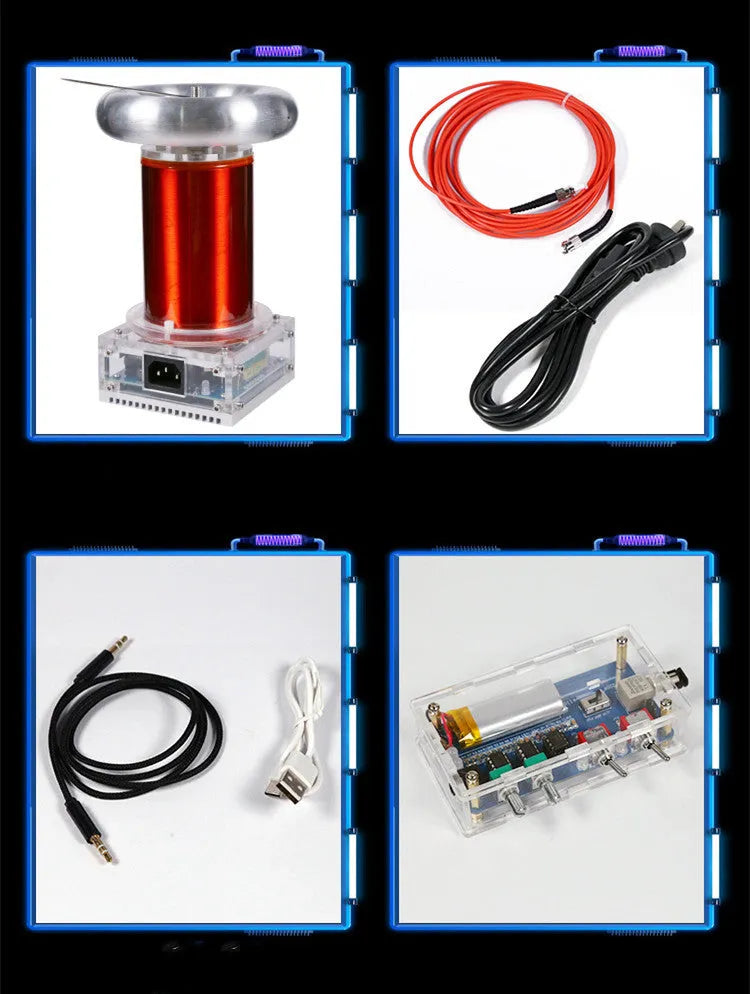

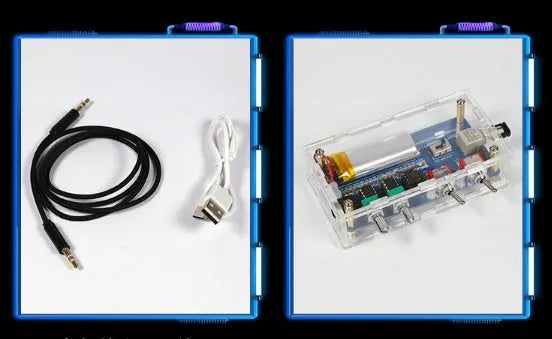

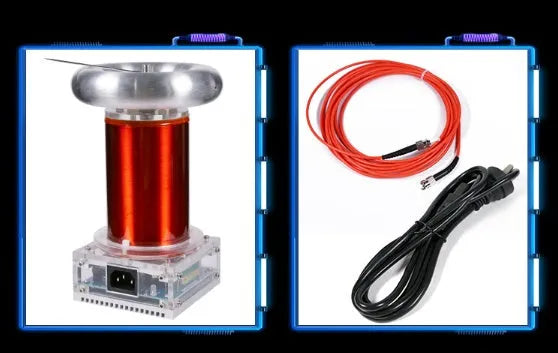

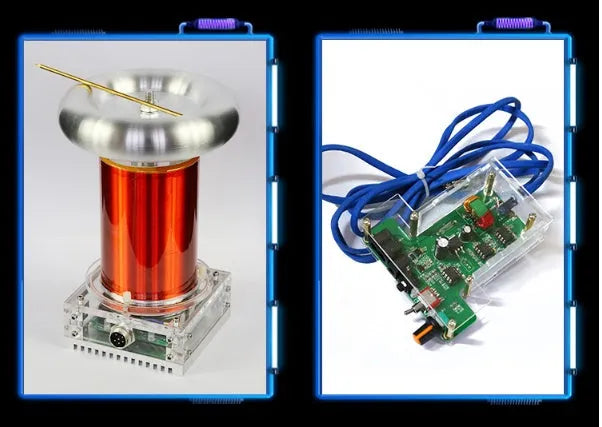

Proper setup begins with placing the thimble on the pressure equalisation ring at the top of the unit, ensuring the tip extends approximately 2-3cm beyond the ring for optimal arc formation. Connection of the optical fibre between the product body and controller requires care, noting the bump on the fibre head that prevents incorrect insertion—users should rotate gently before plugging rather than applying force. The 220V power cable connects to the host unit before linking to a wall socket, completing the basic electrical connections needed for operation.

Activation and Arc Control

After completing connections, users turn the knob counterclockwise to close the arc system and adjust light brightness to its minimum setting before activation. Opening the controller switch followed by potentiometer adjustment initiates arcing, with the intensity controllable via the potentiometer dial. The audio input immediately influences arc behaviour, with musical waveforms modulating the electrical discharges to create synchronised visual patterns that dance to the music's rhythm, frequency, and amplitude.

Safety Considerations and Usage Guidelines

Operating high-voltage equipment demands strict adherence to safety protocols to prevent injury or equipment damage. This Tesla coil system includes specific operational limitations and safety distances that users must observe during all demonstrations. Following these guidelines ensures both the longevity of the equipment and the wellbeing of operators and observers.

Essential Safety Protocols

The fundamental safety rule prohibits touching the coil or voltage equalisation ring at any time while the product is energised, as these components carry high-voltage electricity. Users must maintain a minimum safety distance of 0.5m from operating equipment, with 1m separation recommended as ideal for observation. Before opening or closing the arc system, verification that the potentiometer rests at the 0 position prevents sudden high-intensity discharges that could pose risks.

Operational Limitations and Maintenance

To prevent overheating and component stress, operation should be limited to 3-5 minute sessions, with music playback further restricted to 2-3 minutes within those sessions. These limitations protect the electronics from sustained thermal stress while maintaining reliable performance across multiple uses. Between sessions, allowing adequate cooling time ensures the system remains ready for subsequent demonstrations without degradation of its arc-generating capabilities.
